Thông tin chi tiết sản phẩm:
Nguồn gốc: Thâm Quyến Trung Quốc
Hàng hiệu: LONGDALED
Chứng nhận: CE, RoHS, CCC,FCC
Số mô hình: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 sqm
Giá bán: Usd329 ~ Usd1099 / Sqm ( price is negotiable )
chi tiết đóng gói: Đóng gói với Vỏ máy bay hoặc Vỏ gỗ dán
Thời gian giao hàng: 18-25 ngày
Điều khoản thanh toán: T/T, L/C, Liên minh phương Tây
Khả năng cung cấp: 5000m2/tháng

Flexible Column Led Display With ROHS For Retail Shop Advertising From China

Sự miêu tả
Pixel sân: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4 Kích thước mô -đun: 320*160mm
Đặc trưng: Góc cong >15° Xem góc: 160 °
Điện áp đầu vào: AC110-240V Nhiệt độ: -30℃-70℃
Tuổi thọ (giờ): 100000 Bảo hành: 3 năm
Làm nổi bật:

flexible column LED display for retail

,

ROHS compliant LED advertising screen

,

indoor full color LED display

Flexible Column Led Display With ROHS For Retail Shop advertising from china

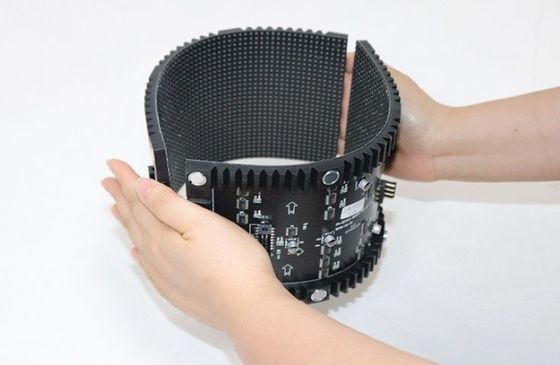

China Flexible LED modules are capable to make any high-definition curved screen surface no matter how small or big the concave or convex is.

Flexible LED displays are capable to make any curved surface no matter how small or big the concave or convex is. The flexible LED screen comes with a modular design available to do any bigger size led screen, and magnetic design available for front service , retail shop , creative column, and so on.


Key Parameters


From fine pitch P1.25mm to a P4mm, it provides many possibilities in your design.


Flexible LED Indoor Screen
Pixel Pitch(mm) P1.25 P1.5 P1.8 P2 P2.5 P3.076 P4
Led lamp SMD1010 SMD1212 SMD1515 SMD1515 SMD2121 SMD2121 SMD2121
Scan 1/64 1/52 1/43 1/40 1/32 1/26 1/20
Resolution 256x128 208x104 172x86 160x80 128x64   104x52  80x40
Module size 320mmx160mm
Cabinet Size Support Customization
Maintenance Mode Magnetic Front Service Support
Brightness 500-800nits
Refresh Rate 3840HZ
Protection Level IP30


Construction of Led Screen



  • Flexible circuit board:
    The core of the screen is a flexible circuit board, which can be made from materials like rubber or soft PCB.

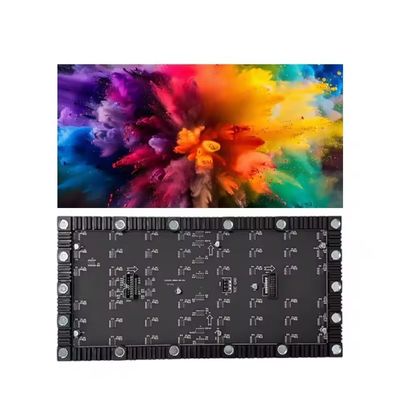

  • LED modules:
    Tiny LEDs are arranged in modules on the flexible circuit board. These modules are designed to connect and be shaped in various forms.
  • Protective layer:
    A transparent, flexible material is used to cover and protect the LED circuits from damage while maintaining the screen's flexibility.
  • Power and control systems:
    A stable power supply and an advanced control system are crucial to ensure that each pixel receives consistent power and that the entire screen maintains uniform brightness, color, and resolution.

Flexible Column Led Display With ROHS For Retail Shop Advertising From China 0


Flexible Column Led Display With ROHS For Retail Shop Advertising From China 1


Intelligent Design Features


  • Bendable design:
    The screen is engineered to be bent or curved to fit unique structures like spheres, columns, or wave shapes without affecting image quality.

  • High-quality visuals:
    High contrast, high refresh rates, and grayscale technology are incorporated to ensure sharp and vibrant picture quality.

  • Installation:
    Many flexible LED panels use magnetic adsorption for convenient installation and maintenance, allowing them to be attached to various surfaces.

  • Durability:
    The use of flexible, insulated materials makes the screens resilient and durable, with some versions designed for outdoor use with water and dust resistance.


    Flexible Column Led Display With ROHS For Retail Shop Advertising From China 2

How much would it cost ?


  • At first, based on the actual size of the scene, we will design the perimeter and height of the cylinder for you.
  • Secondly, match the module quantities and customize the metal frame.
  • Finally, the best price will be sent to you.


If you are interested, just contact me to learn more!
